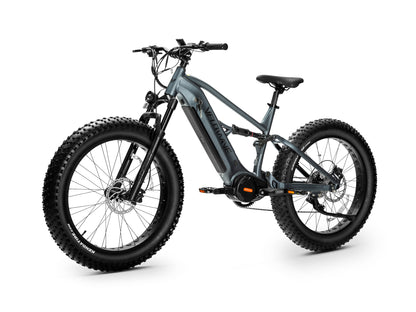

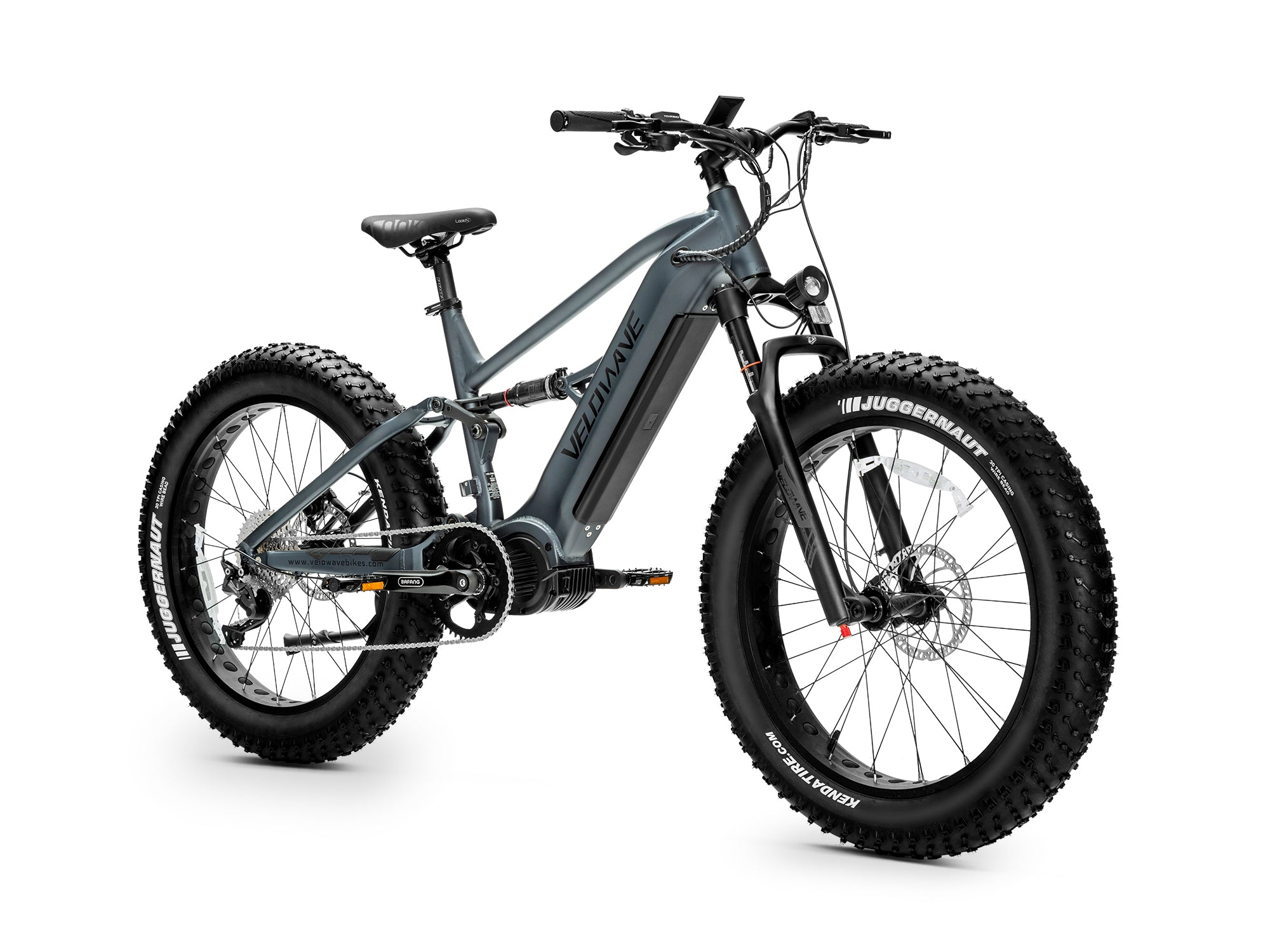

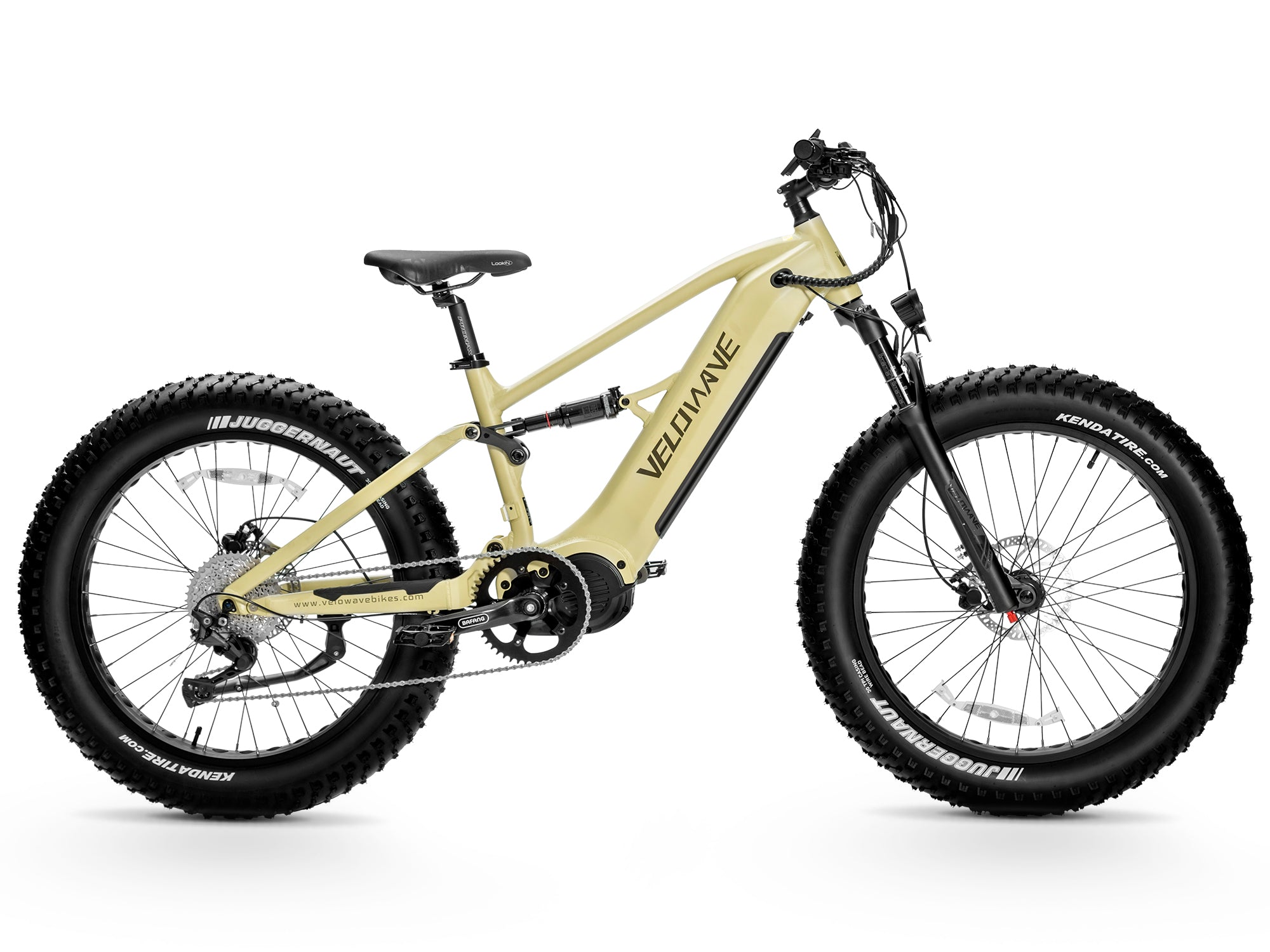

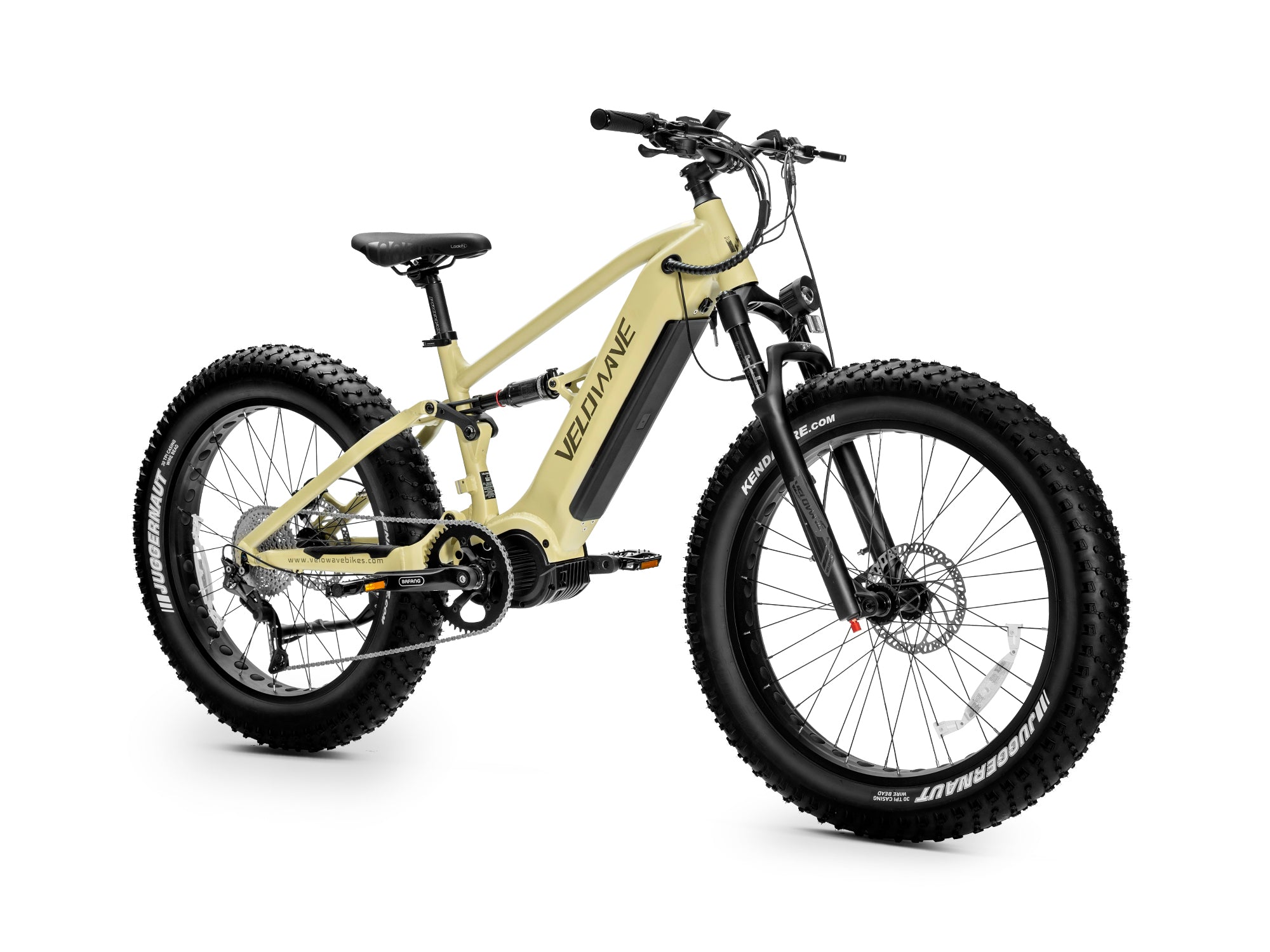

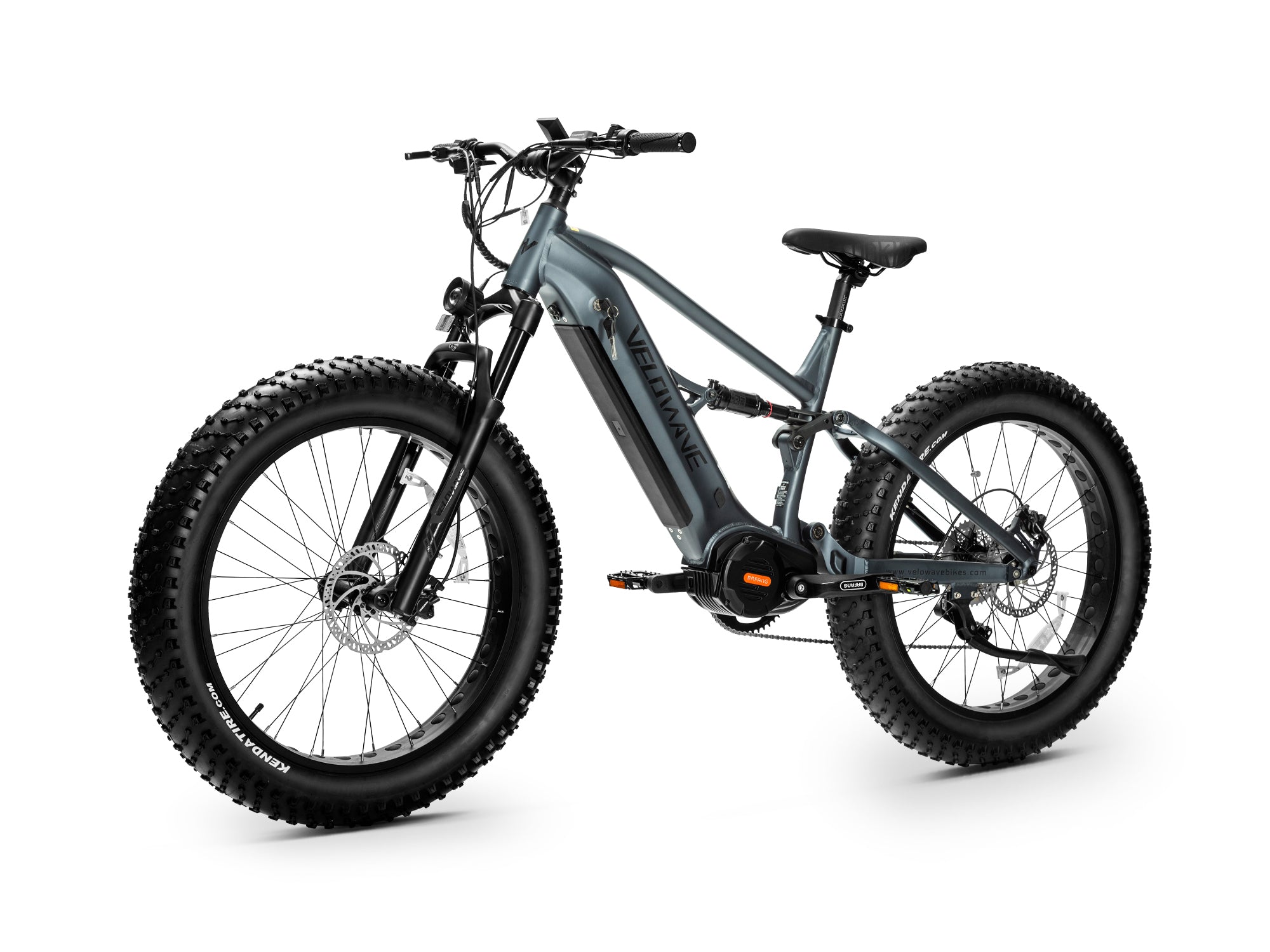

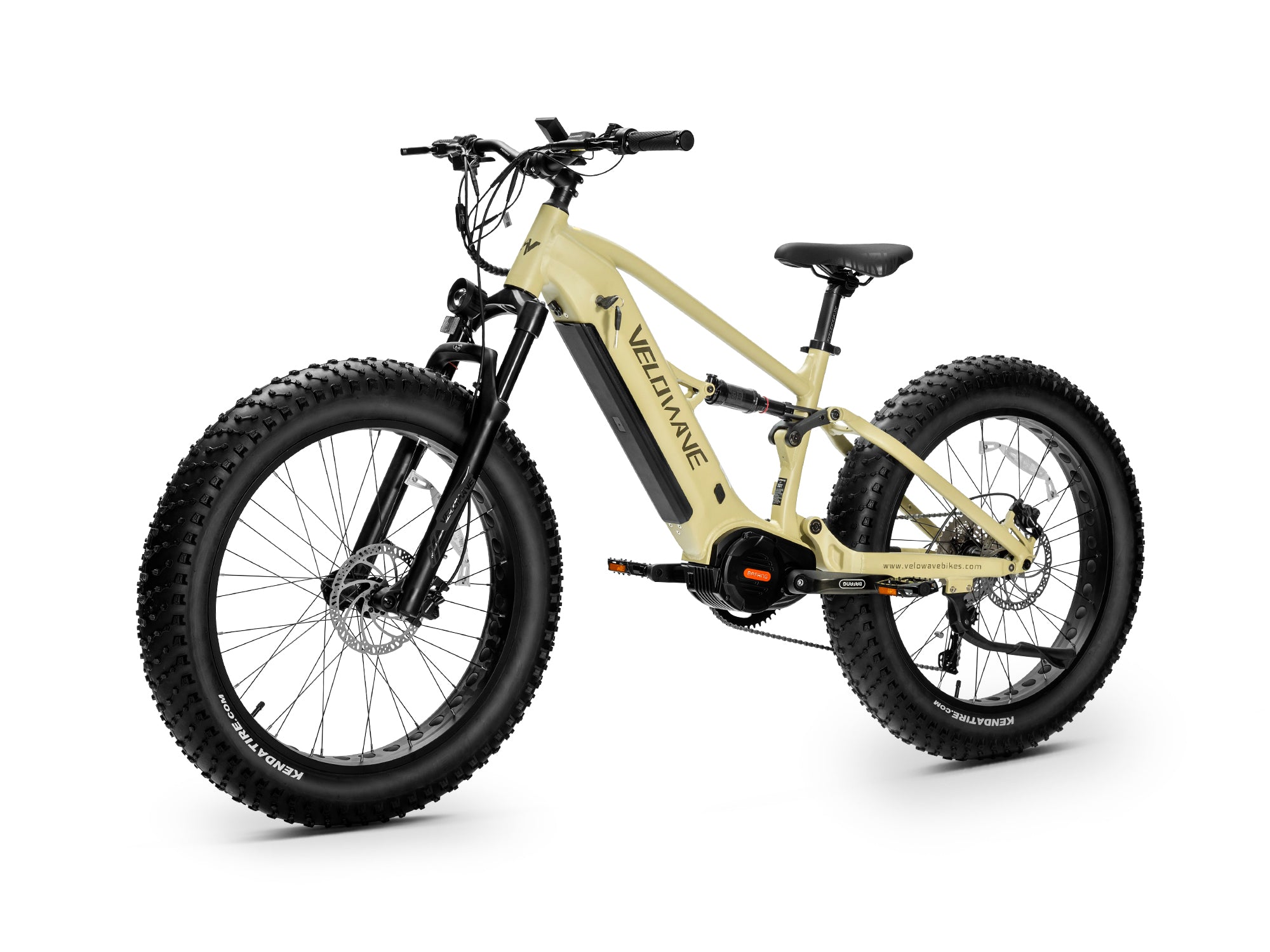

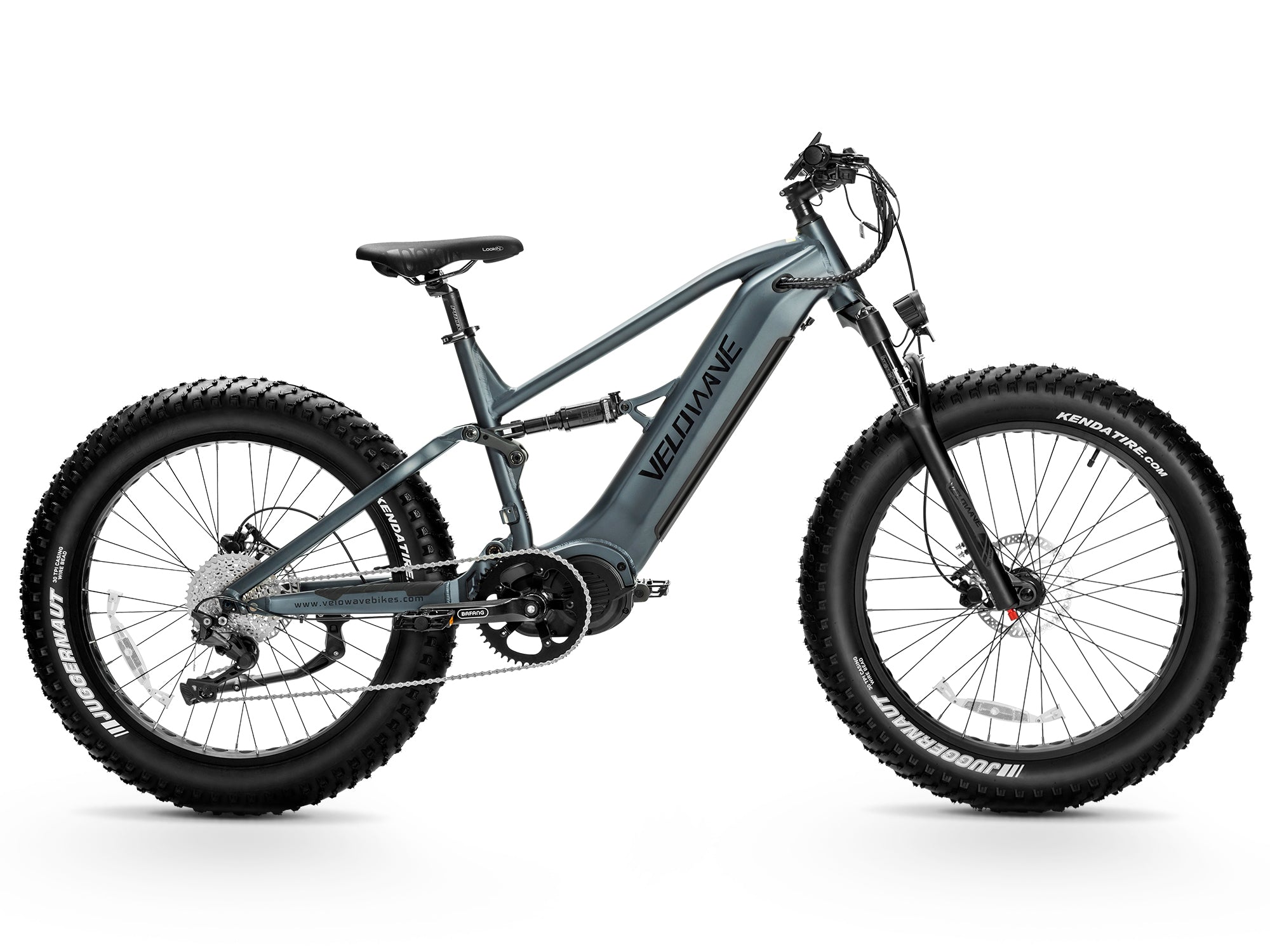

Brawny XM MTB Mountain Electric Bike

5.0
Rated 5.0 out of 5 stars
67 Reviews
Regular price $3,499 USD
Size: 17''
Color: Olive Green
USE CODE
MO200
$200 OFF
May 22 – June 5
Add any accessory, save 30%










Save more buy with ebike
Motor
Motor
1000W
Range
Avg. Range
75 Miles
sensor
Sensor
Torque Sensor
Top Speed
Top Speed
37 MPH
Battery
Battery
48V 20AH
Payload Capacity
PayLoad Capacity
385 lbs
Brawny XM MTB Mountain Electric Bike
$3,499.00 USD
17'' / Olive Green
Add extend protection powered by
VELOWAVE
What is my size?
What's in the Box
SIZE &CHART

Size Chart

Frame size Rider Height Inseam
17" 5'5" - 6'4"
165 - 192 cm
31" - 35"
78 - 89 cm
19" 5'6" - 6'5"
168 - 195 cm
33" - 36"
80 - 92 cm
What's in the Box

Safe Packaging

Our packaging

What is in the box

Our packaging
Electric Bike x 1
Our packaging
Charger x 1
Our packaging
Battery x 1
Our packaging
Front Light & Reflector Combo x1
Our packaging
Rear Blinking Light x1
Our packaging
Pedals x 2
Our packaging
Instruction Manual x 1
Our packaging
Allen Wrench x 1
Our packaging
Spare Spokes x 2

Brawny XM

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.

Key Features
Unstoppable Power

Unstoppable Power

Equipped with a robust 1000W motor (peaking at 1200W) and delivering an impressive 160Nm of torque, the Brawny effortlessly powers through inclines and rough landscapes, making every ride exhilarating.

Suspension and Brake

Suspension and Brake

Take on rough terrains with confidence thanks to the air suspension fork with 100mm travel and lockout feature, coupled with a Rockshox RS-MNR-R-C4 rear suspension for 44mm travel and external rebound adjustment. Tektro hydraulic disc brakes with 180mm discs and a power-cut-off function ensure reliable stopping power under any conditions.

Smart Display and Speed

Smart Display and Speed

Navigate with confidence using the TFT Smart Easy Read Display, featuring a colorful screen and backlight for easy readability in all conditions. Enjoy speeds up to 37 MPH with pedal assist and up to 20 MPH on throttle mode, ensuring a swift and responsive ride.

Long-Lasting Battery

Long-Lasting Battery

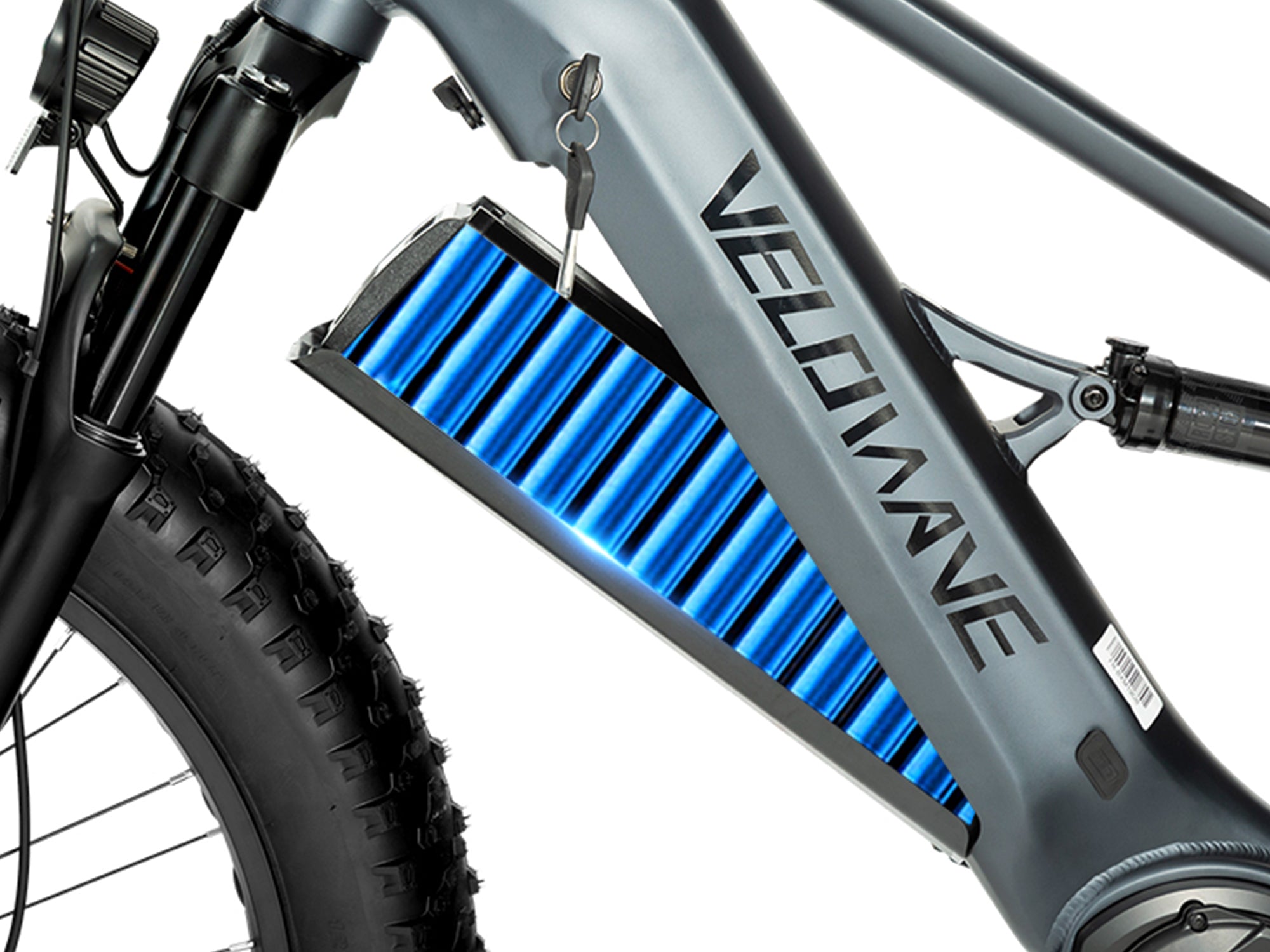

The Brawny boasts a removable 48V 20Ah Lithium-ion battery with LG cells, providing up to 85 miles on pedal assist and 60 miles on throttle mode on a single charge. The included 48V 3 Amp charger replenishes the battery in approximately 7 hours, keeping you ready for your next adventure.

Pedal & Gear System

Pedal & Gear System

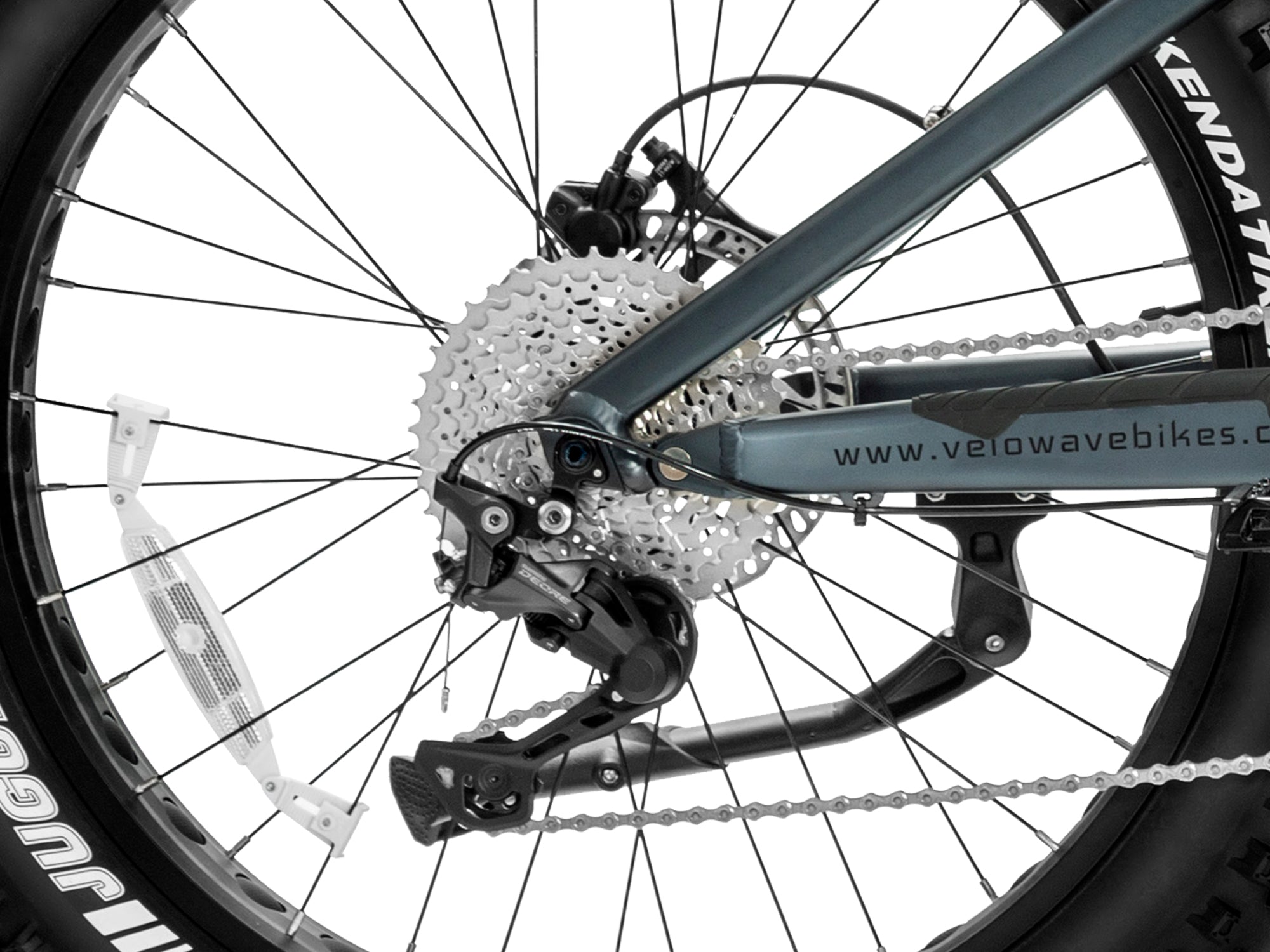

Tailor your ride with 6 levels of pedal assist, seamlessly integrated with a Shimano Deore 10-speed rear derailleur, Shimano 10-speed thumb shift lever, and a 48T crankset for smooth shifting and efficient power transmission.

Rider Reviews

Velowave Brawny XM Mountain Electric Bike Assembly Tutorial
Most Expensive Velowave Ebike | Brawny XM
Specs & Size
Ranger 2.0 Fat Tire All-Terrain Electric Bike
Size 17'' 19''
Total Length 2087mm 2100mm
Head Tube Length 150mm 150mm
Seat Tube 432mm 483mm
Handlebar Height 1158mm 1158mm
Wheelbase 1318mm 1331mm
Standover Height 774mm 823mm
Reach 469mm 475mm
Seat Height Min/Max 841mm/1040mm 890mm/1090mm

General

  • Classes: Off-Road (Ebikes can go up to 37mph with pedal assistance)
  • Max Speed: Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
  • Range:Avg. 75 Miles* on PAS, up to 85 Miles on Level 1, 60 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F (30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

  • Frame: 6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
  • Fork: Air Suspension Fork with 100mm travel, with lockout
  • Rear Suspension: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

Wheels

  • Rim: Aluminum 26" 36H Front & Rear
  • Front Wheel Spokes: Black Stainless 13G x 255/257 mm, Front and Rear
  • Hubs: Disc Nutted Front / Rear Axles
  • Tire: Kenda 26" x 4.8" Fat Tires
  • Tire Size: 26" x 4.8"

E-system

  • Battery: Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
  • Charger: 48V 3 Amp Charger, Approx. 7 Hour Charging
  • Motor: 1000W (Peak 1200W),160Nm
  • Display: TFT Smart Easy Read Display with Backlight, Colorful screen
  • Pedal Assist: 6 Levels
  • Sensor: Torque Sensor
  • Throttle: Throttle on demand - Throttle from a complete stop
  • Light: Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

  • Shifter: Shimano 10-Speed Thumb Shift
  • Pedal Assist: 6 Levels
  • Crankset: 170mm w/ 48 T
  • Freewheel: Shimano 11-42T, 10-Speed CASSETTE
  • Pedals: Alloy Platform
  • Chain: KMC 134 Link, 10-Speed
  • Rear Derailleur: Shimano Deore RD-M4120 11-Speed

Components

  • Saddle: Comfortable Wide Saddle
  • Seatpost: Forged Alloy, φ31.6x300mm
  • Seat Clamp: φ38.1mm Quick Release
  • Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
  • Handlebar: Aluminum Ø31.8mm, Width 740mm
  • Headset: Sealed Bearing Headset
  • Grips: Ergonomic Comfort
  • Brakes: Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
  • Kickstand: Included, Rear Mount
  • Fenders: Not Included
  • Rear Rack: Not Included

Weight

  • Net Weight: 82 lbs / 37.2 kg (including battery)
  • Gross Weight: 111 lbs / 50.5 kg
  • Battery Weight: 11.4 lbs / 5.15 kg
  • Max Load Capacity: 385 lbs / 175 kg (including cargo)

Size

  • Product Size: 2100 x 1158 x 745 mm
  • Packing Size: 1700 x 350 x 900 mm
